Features

Upper semi-rod not connected to the lower one for more effective precise movement and no contact with travel limit
Cage designed to improve maximum cross-chaining situations – reduces transmission contact and friction
Ideal for wider tires – 32 mm section tires can be mounted without the risk of contact with the derailleur
Optimised inner cage design – it precisely accompanies the chain onto the large chainring
Double-position fixing of the cable for maximum compatibility with frames and tires
Optimised position for every engaged sprocket – no risk of contact with the chain

Compatibility

For performance, longevity and functionality the Chorus drivetrain must be used with the mechanical Campagnolo 12-speed drivetrain components.

Specifications

Material: aluminium, steel
Weight: approx. 94g
Construction type/Clamp diameter: brazed on
Derailleur max. chainring: 56 teeth
Chainwheel number: 2
Fitting for derailleur: Campagnolo 2×12-speed, mechanical
Overall capacity: 16 teeth

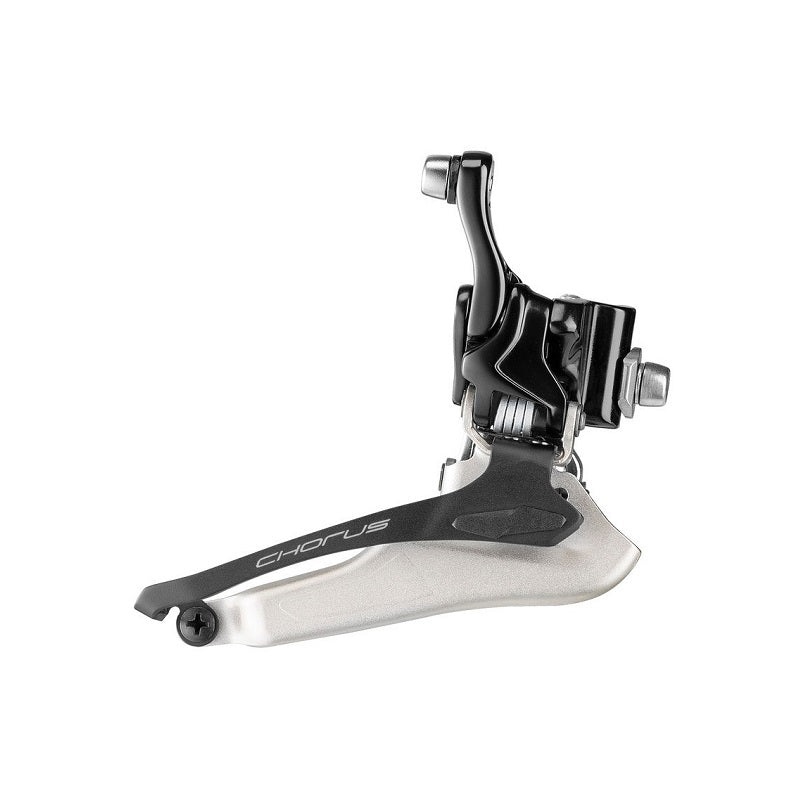

CHORUS FRONT DERAILLEUR

FEATURES & BENEFITS

• Upper semi-rod not connected to the lower one
• Cage designed to improve maximum cross-chaining situations
• Ideal for wider tires
• Design optimized for inner cage

Find out more

The precise, extremely fluid movement of the front derailleur is achieved in part thanks to the new cables and their housing and in part because of the design and construction of the 2×12-speed front derailleur. The new Chorus derailleur incorporates the same design that separates the upper from the lower semi-rod, eliminating the free stroke for more immediate, responsive upshifting. Design of the 2×12 speed front derailleur and its trajectory angle mean wide tires measuring up to 32 mm can be used, while the new design of the cage and dedicated positions for each gear position ensure extremely precise and fluid derailleur performance.

• Weight: 94 grams
• Ideal for wider tyres
• Design optimised for inner cage
• Double-position fixing of the cable
• Optimized position for every engaged sprocket
